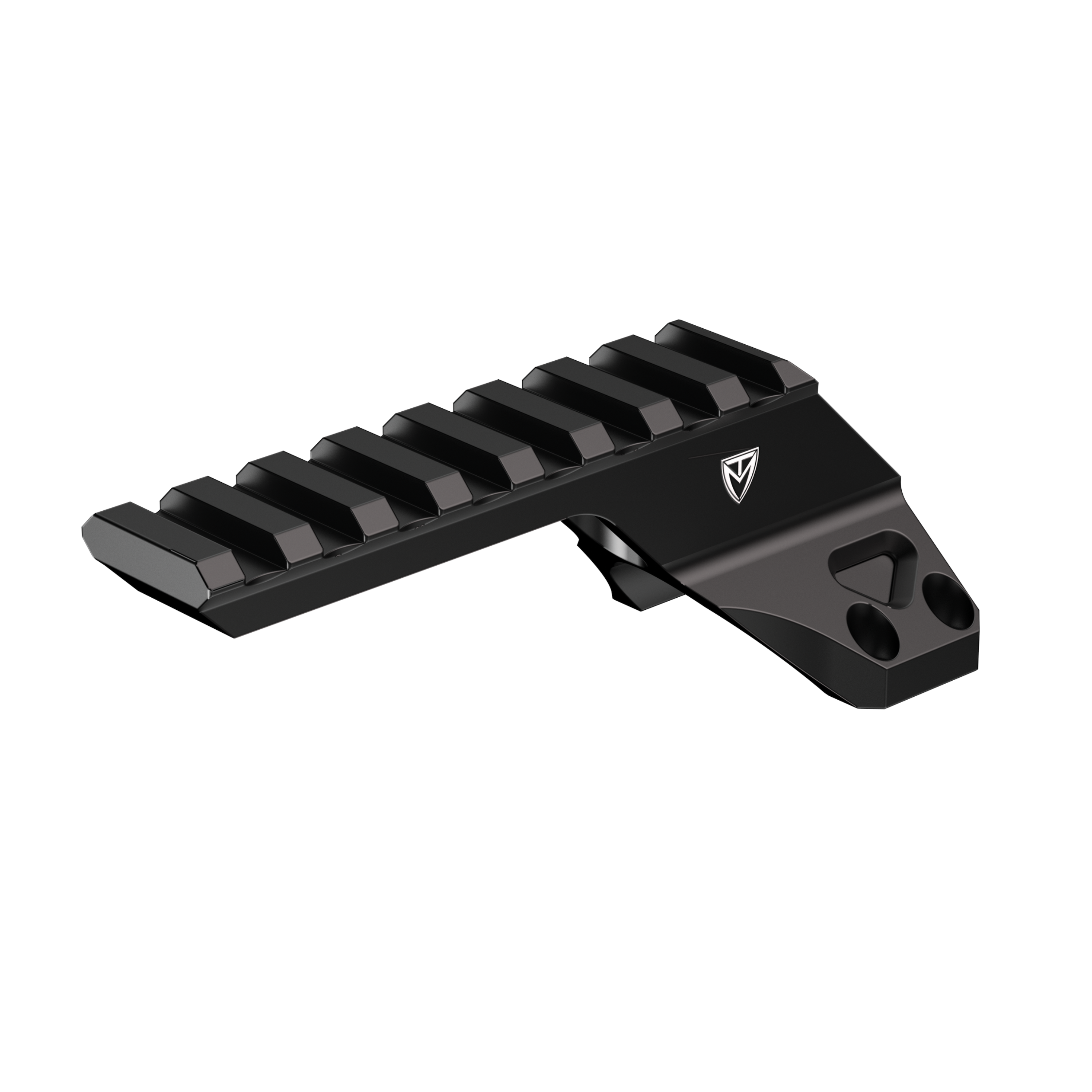

X4 Diving Board Mount
$199.00
Allows the X4-LRF™ to be mounted above a scope.
Compatible with X4-FCS™, Geissele, and Reptilia 30mm and 34mm mounts.
Eight standard Picatinny rail stations allows for mounting of other rail-mounted accessories, if desired.
Fasteners can be Maztech or Reptilia standard scope fasteners.
LPVO Size
CALIFORNIA WARNING: Can expose you to formaldehyde, a carcinogen, and bisphenol S (BPS), a reproductive toxicant. See www.P65Warnings.ca.gov.
Also available at Maztech Preferred Distributors:
These accessories sold separately:
X4-FCS
_edited_edited_edited.png)
X4 FCS-to-LRF Cable

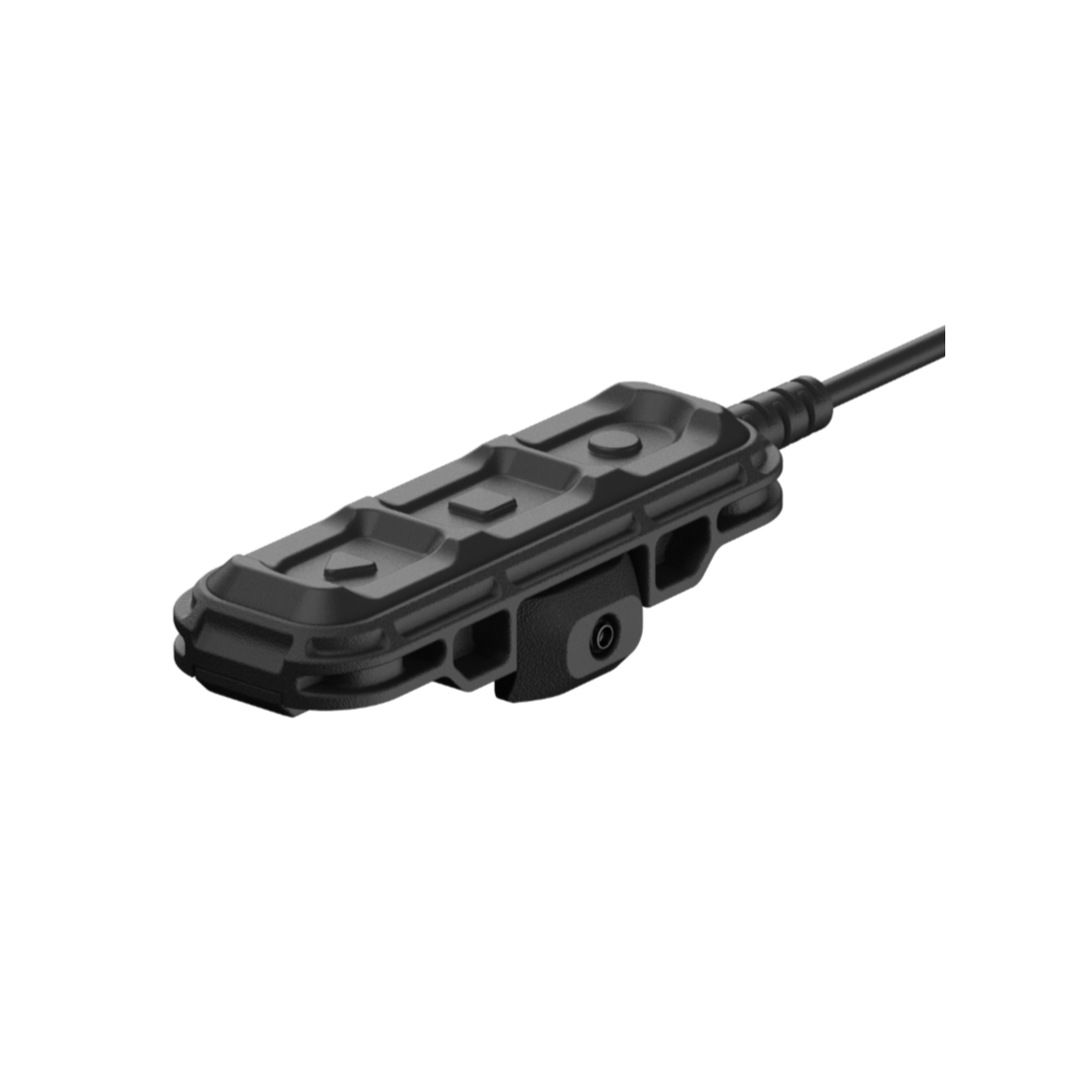

X4 Rail-Mounted Remote
_edited_edited_edited.png)

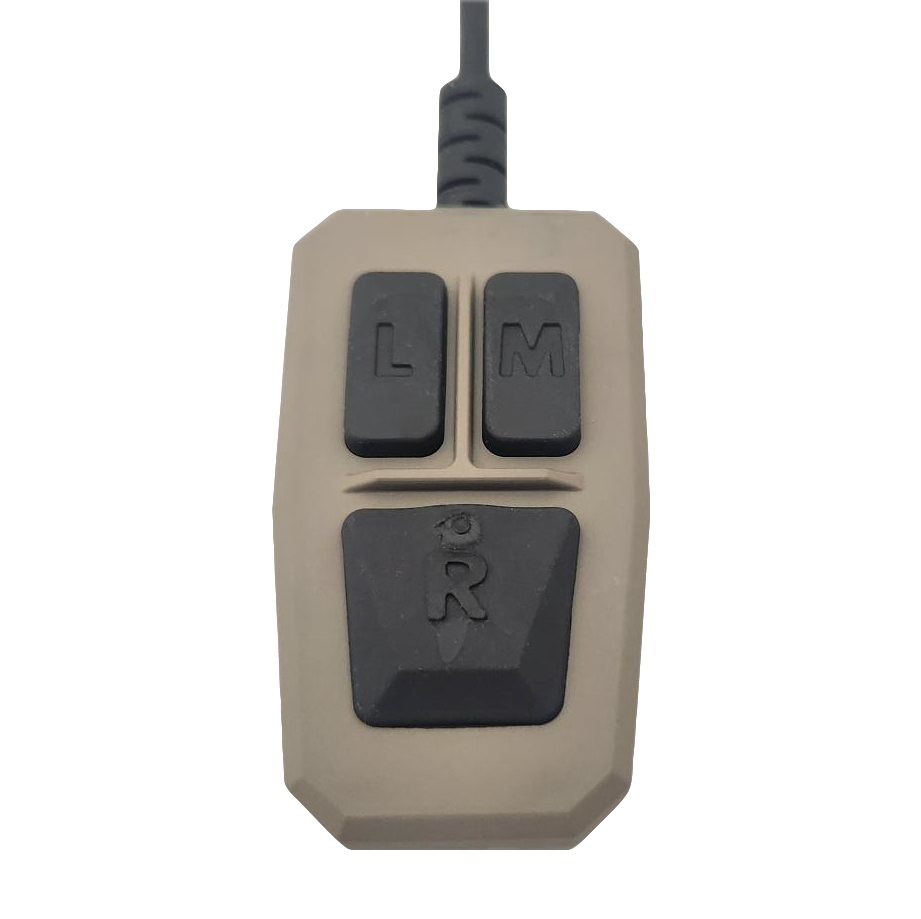

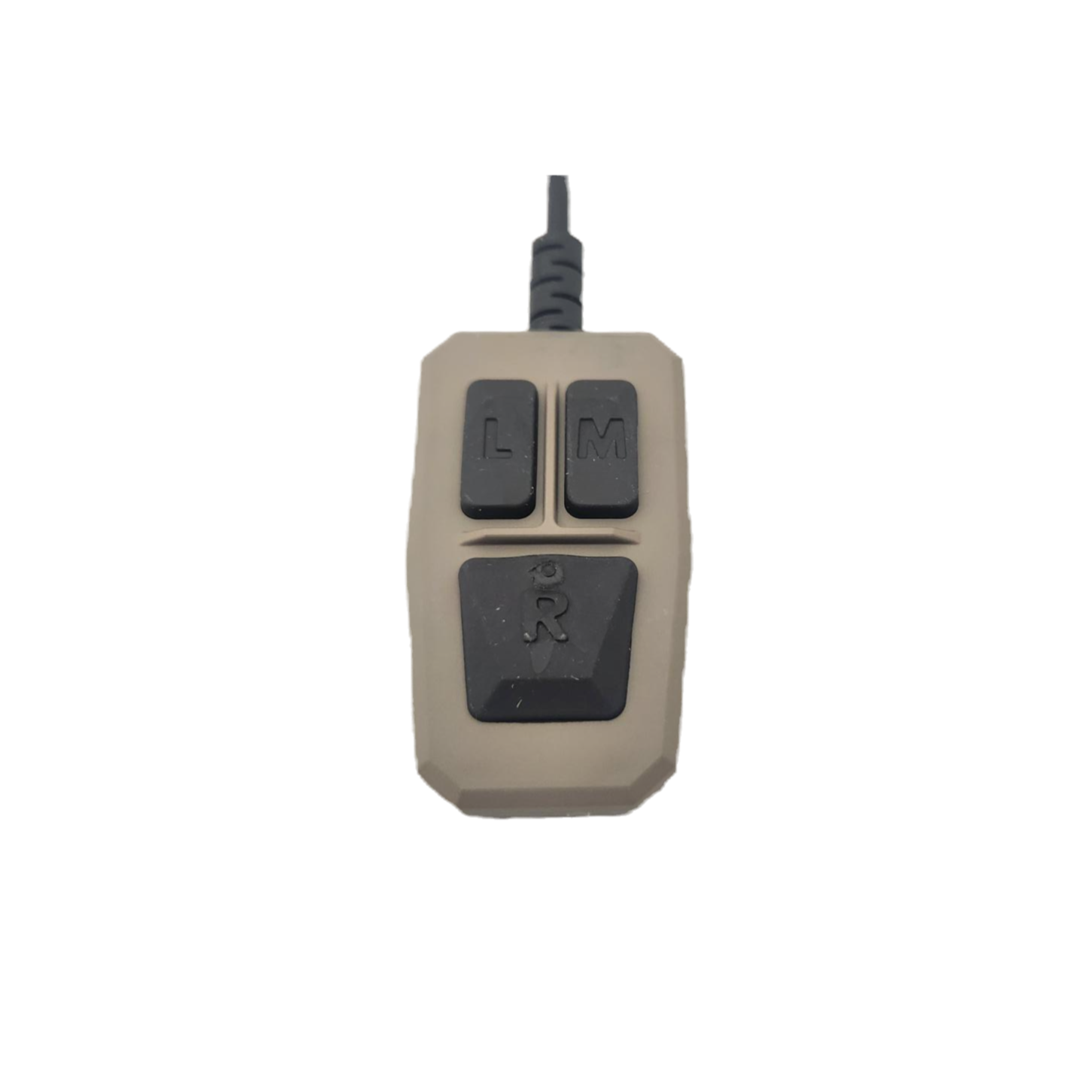

X4 Low-Profile Remote
X4 Diving Board Mount
Or evaluate the whole X4 System:
X4 System
.png)
Large format display readable in full sunlight with polarized glasses
Designed to meet MIL-STD-810 environmental specs
Accurate ranging for commercial and military applications
Manufactured from solid billet aircraft-grade 7075-T6 aluminum
Designed and manufactured in the USA
X4-LRF-2K Data Sheet
X4-LRF-15K Data Sheet
X4-LRF-15M Data Sheet
Rangefinding Laser:
2K Variant - 905 nm
15K & 15M Variants - 1534 nm
Co-Aligned Auxiliary Lasers:
Visible Aim Laser (Red 660 nm)
IR Aim Laser (842 nm)
Rail Mount:
STANAG 4694 (Compatible with STANAG 2324 / Picatinny MIL-STD-1913)
Integrated Ballistics Solver:
Applied Ballistics® Solver with On-Board Motion and Environmental Sensors
Weight:
2K Variant - 12.3 oz (348 g) with battery
15K & 15M Variants - 12.9 oz (367 g) with battery
Dimensions (L,W,H):
5.2 in. x 2.8 in x 1.8 in (133 mm x 72 mm x 47 mm)
Battery Type:
Supplied - CR123A (Rechargeable USB-C)
Wireless Connectivity:
Bluetooth® Low Energy and Ultra-Wideband (UWB).
Each can be disabled.
Temperature Rating:
-40°F to 140°F (-40°C to 60°C) subject to appropriate temperature-rated batteries
External Color:
Flat Dark Earth
Use the Maztech Companion App for Quick Setup of Ballistic Profiles.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Maztech Industries is under license. Other trademarks and trade names are those of their respective owners.
The X4-LRF comes with an X4 Low-Profile Remote (12” cable length).
The X4-LRF also comes with:
• Rechargeable CR123 battery
• USB-C charging cable
• Lens cleaning cloth
• Drawstring bag
• X4-LRF Alignment Target
• 5/64 Allen Key
• Mini flathead screwdriver
• Bluetooth® USB Dongle
• Quick Start Guide
• User Manual
• Maztech Patch
• Maztech Stickers
X4-LRF Quick Start Guide
X4-LRF Online Manual
X4-LRF-15M Online Manual
EXPORT NOTICE: The X4-LRF is controlled for export under the International Traffic in Arms Regulations (ITAR), which are administered by the U.S. Department of State and listed on the United States Munitions List (USML). As part of your acceptance of goods, technical data, or services provided, you acknowledge that the unauthorized export, re-export, transfer, or disclosure, directly or indirectly, of the controlled items, technical data, or services is strictly prohibited under U.S. law. Violations of these regulations are subject to severe civil and criminal penalties, including fines and imprisonment.
It is the sole responsibility of the customer to comply with all applicable U.S. export control laws and regulations, including obtaining the necessary licenses or other governmental authorizations prior to exporting, re-exporting, or transferring controlled items, technical data, or services. By acquiring ITAR-controlled products or data, you represent and warrant that you are not prohibited from receiving such items under U.S. export laws.
PLEASE NOTE: Certain jurisdictions may restrict the sale, shipment, or use of this product. It is your responsibility to comply with local laws.
WARNING: Observe safe firearm handling practices at all times. Failure to do so may result in serious bodily injury or death. Maztech Industries shall not be responsible for injury, death, or property damage resulting from faulty installation, misuse, illegal use, or modification of this product.
A 1534nm laser is eye safe at higher power levels than a 905nm laser, increasing its effective range for longer-distance targets. Additionally, the 1534nm laser offers the advantage of being undetectable by traditional night vision devices, enhancing its covert capabilities and is a preferred laser rangefinder wavelength for military systems.
The X4-LRF™ comes in Flat Dark Earth (FDE). Coming soon: Black or Olive Drab (OD) Green options. Note: The body is Type III Hard Anodize Finished - individual color shades may vary.
Yes, using the included ironsights.
Yes, it comes with a rechargeable CR123 battery.
Class 1 lasers are low powered devices that are considered completely eye-safe.
No. The X4-LRF™ has been designed to run standalone without ever needing to connect to another device or the internet. However, some of the more advanced configuration options are only accessible via a phone.
OLED Display
The X4-LRF™ has an UWB radio allows which allows it to host a personal-area, secured, encrypted network for wireless accessory communication (coming soon). The radio is OFF by default.
Yes. The UWB and Bluetooth® systems can be completely disabled.
The X4-LRF™ ballistic engine supports the vast majority of bullet and weapon types on the market.
Applied Ballistics
The X4-FCS™ and X4-LRF™ ballistic solvers support the vast majority of bullet and weapon types on the market.
The X4-FCS™ and X4-LRF™ ballistic solvers utilize temperature, humidity, pressure, pitch, roll and heading from the onboard sensors. Wind is utilized but must be manually entered (Kestrel compatibility coming soon).
Yes
A laser rangefinder is an electronic device that uses a laser beam to determine the distance to an object.
The 2K utilizes a 905nm commercial-grade laser. The 15K utilizes a 1534nm military-grade laser and is not detectable by night-vision devices. The 15K is quicker at taking ranges and ranging smaller targets than the 2K. Additionally, the 15K can take ranges more reliably than the 2K in adverse conditions such as fog and smoke.
Designed, Engineered, and Manufactured in the USA.
Yes, the X4-LRF™ must be sold to US Persons within the USA. (Coming soon: X4-LRF non-ITAR restricted version)
Yes.
The X4-FCS™ and X4-LRF™ are designed for submersion in 3 feet of water for 30 minutes.
The operating range is -40° F to 140° F (-40° C to 60° C), subject to appropriate temperature-rated batteries.
X4-LRF-2K
A rugged multi-pulse laser rangefinder with integrated co-aligned pointers and a built-in weather station.
X4-LRF-15K
X4-LRF-15M
Engineered to provide ultimate range to target capability with instantaneous reliable returns in the same compact package. Ideal for competition shooters.
High-power aiming designed exclusively for Military and Law Enforcement partners.
Maximum range
2,180 yards
2,000 meters
16,400 yards
15,000 meters
16,400 yards
15,000 meters
Aim laser power
4.9 mW visible
0.7 mW IR
Class 3R laser product.
4.9 mW visible
0.7 mW IR
Class 3R laser product.
70.0 mW visible
40.0 mW IR
Class 3B laser product.
Adjustable power levels.
Ranging wavelength
905 nm
NIR-I
1534 nm
SWIR
Undetectable with night vision.
1534 nm
SWIR
Undetectable with night vision.
Weight
12.3 oz
348 g
Including battery.
12.9 oz
367 g
Including battery.
12.9 oz
367 g
Including battery.
Battery life
10,000+ range events
One rechargeable CR123 is supplied.
Wireless connectivity
Bluetooth® Low Energy and Ultra-Wideband (UWB)
Each can be disabled.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Maztech Industries is under license. Other trademarks and trade names are those of their respective owners.
X4-LRF-2K
A rugged multi-pulse laser rangefinder with integrated co-aligned pointers and a built-in weather station.
X4-LRF-15K
X4-LRF-15M
Engineered to provide ultimate range to target capability with instantaneous reliable returns in the same compact package.
High-power aiming designed exclusively for Military and Law Enforcement partners.
X4-LRF-2K
A rugged multi-pulse laser rangefinder with integrated co-aligned pointers and a built-in weather station.
X4-LRF-15K
Engineered to provide ultimate range to target capability with instantaneous reliable returns in the same compact package. Ideal for competition shooters.
X4-LRF-15M
High-power aiming designed exclusively for Military and Law Enforcement partners.
LRF-2K
LRF-15K
LRF-15M
Maximum range
2,180 yd
2,000 m
16,400 yd
15,000 m
16,400 yd
15,000 m
Aim laser power
4.9 mW vis.
0.7 mW IR
Class 3R laser product.
4.9 mW vis.
0.7 mW IR
Class 3R laser product.
70 mW vis.
40 mW IR
Class 3B laser product.
Adjustable power levels.
Ranging wavelength
905 nm
NIR-I
1534 nm
SWIR
Undetectable with night vision.
1534 nm
SWIR
Undetectable with night vision.
Weight
12.3 oz
348 g
Including battery.
12.9 oz
367 g
Including battery.
12.9 oz
367 g
Including battery.
Battery life
10,000+ range events
One rechargeable CR123 is supplied.
Wireless connectivity
Bluetooth® Low Energy and Ultra-Wideband (UWB)
Each can be disabled.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Maztech Industries is under license. Other trademarks and trade names are those of their respective owners.
These accessories sold separately:
X4-LRF
X4 FCS-to-LRF Cable
X4 Rail-Mounted Remote
X4 Low-Profile Remote
X4 Diving Board Mount
Or evaluate the whole X4 System:
X4 System
User-customizable symbology on daylight-readable display
Designed to meet MIL-STD-810 environmental specs
Compatible with most 30 mm and 34 mm LPVO scopes
Manufactured from solid billet aircraft-grade 7075-T6 aluminum
Designed and manufactured in the USA
X4-FCS Data Sheet
Caliber:
Any
Platform:
STANAG 4694
(Compatible with STANAG 2324 / Picatinny MIL-STD-1913)
Scope Compatibility:
Most 30 mm or 34 mm LPVO scopes
Reticle Color:
Green
External Color:
Black
Weight:
22.6 oz (642 grams) with batteries
Dimensions (L,W,H):
8.2 in x 2.3 in x 3.0 in (209 mm x 59 mm x 77 mm)
Battery Type:
Supplied - Rechargeable USB-C 18650 (2x)
Optional - CR123 (4x)
Battery Life:
1 year at 10 operating hours per week
Connectivity:
Bluetooth® Low Energy, Near-Field Communication (NFC), and Ultra-Wideband (UWB). Each can be disabled.
Ballistics Solver:
Applied Ballistics®
Temperature Rating:
-40°F to +140°F (-40°C to 60°C) subject to appropriate temperature-rated batteries.
Use the Maztech Companion App for Quick Setup of Ballistic Profiles.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Maztech Industries is under license. Other trademarks and trade names are those of their respective owners.
The X4-FCS comes with:
• Two rechargeable 18650 batteries
• Two USB-C charging cables
• Lens cleaning cloth
• Drawstring bag
• T15 Torx wrench
• Loctite® 242
• Mini flathead screwdriver
• Bluetooth® USB Dongle
• Quick Start Guide
• User Manual
• Maztech Patch
• Maztech Stickers
X4-FCS Quick Start Guide
X4-FCS Online Manual
EXPORT NOTICE: The X4-FCS is controlled for export under the International Traffic in Arms Regulations (ITAR), which are administered by the U.S. Department of State and listed on the United States Munitions List (USML). As part of your acceptance of goods, technical data, or services provided, you acknowledge that the unauthorized export, re-export, transfer, or disclosure, directly or indirectly, of the controlled items, technical data, or services is strictly prohibited under U.S. law. Violations of these regulations are subject to severe civil and criminal penalties, including fines and imprisonment.
It is the sole responsibility of the customer to comply with all applicable U.S. export control laws and regulations, including obtaining the necessary licenses or other governmental authorizations prior to exporting, re-exporting, or transferring controlled items, technical data, or services. By acquiring ITAR-controlled products or data, you represent and warrant that you are not prohibited from receiving such items under U.S. export laws.
PLEASE NOTE: Certain jurisdictions may restrict the sale, shipment, or use of this product. It is your responsibility to comply with local laws.
WARNING: Observe safe firearm handling practices at all times. Failure to do so may result in serious bodily injury or death. Maztech Industries shall not be responsible for injury, death, or property damage resulting from faulty installation, misuse, illegal use, or modification of this product.
1 year at 10 hours per week for typical usage. The X4-FCS™ uses motion activated wake technology allowing the system to sleep when not in use and to instantly turn on when you need it, greatly extending the battery life.
The X4-FCS™ comes with two rechargeable, protected cell 18650s with integrated charger and cable.
You will still be able to use your LPVO, even if the X4-FCS™ batteries are depleted.
Display symbology (reticle and text) is green.
Yes. The X4-FCS™ has been specifically designed to provide ultra-high brightness symbology and text that can be viewed in full sunlight.
The symbology positions and sizes are customizable by the user.
The X4-FCS™ comes in Black. Coming soon: Flat Dark Earth (FDE), or Olive Drab (OD) Green options. Note: The body is Type III Hard Anodize Finished - individual color shades may vary.
Bake-on coating, including low-temperature Cerakote, CANNOT be used on the X4-FCS™. Spray-paint can be utilized as long as proper instructions are followed to avoid damage (see X4-FCS user manual).
The X4-FCS™ weighs 22.6 oz (642g) with 18650 batteries (without LPVO).
1.93 inches (49mm) for a standard 1913 Picatinny Rail.
Billet 7075-T6 Aluminum.
The X4-FCS™ has an NFC system to allow for easy one-touch pairing of X4 Accessories. Simply hold an X4 wireless accessory (coming soon) next to the X4-FCS™ NFC touchpoint and it will instantly pair to your X4-FCS™ secure network. The NFC is OFF by default.
The X4-FCS™ has a UWB radio which allows it to host a personal-area, secured, encrypted network for X4 wireless accessory communication (coming soon). The radio is OFF by default.
No. The X4-FCS™ has been designed to run standalone without ever needing to connect to another device or the internet. However some of the more advanced configuration options are only accessible via a phone.
Yes. The UWB, Bluetooth®, and NFC systems can be completely disabled.
Applied Ballistics
The X4-FCS™ and X4-LRF™ ballistic solvers support the vast majority of bullet and weapon types on the market.
The X4-FCS™ and X4-LRF™ ballistic solvers utilize temperature, humidity, pressure, pitch, roll and heading from the onboard sensors. Wind is utilized but must be manually entered (Kestrel compatibility coming soon).
Yes
Yes. The X4-FCS™ symbology operates equivalent to a first focal plane sight. The symbols zoom with the LPVO zoom.
0.5 MOA.
115 MOA (33 MIL)
No, the X4-LRF™ is sold separately.
No, the X4-FCS™ does not include a scope. The X4-FCS™ is designed to work with a user-supplied 30 mm or 34 mm LPVO.
A LPVO is a Low-Power Variable Optic scope. It usually comes in 30 mm or 34 mm configurations.
The X4-FCS™ is designed to be compatible with most 30 mm or 34 mm LPVOs. A different variant is sold for each LPVO size.
The X4-FCS™ provides enhanced capabilities without reducing your LPVO's performance.
Yes. The X4-FCS™ is compatible with both first focal plane sights and second focal plane sights.
Yes. The X4-FCS™ will display rounds remaining.
Designed, Engineered, and Manufactured in the USA.
Yes, the X4-FCS™ must be sold to US Persons within the USA.
Yes.
The X4-FCS™ and X4-LRF™ are designed for submersion in 3 feet of water for 30 minutes.
The operating range is -40° F to 140° F (-40° C to 60° C), subject to appropriate temperature-rated batteries.
The X4-FCS is compatible with most 30mm and 34mm Low-Power Variable Optics (LPVOs).
Download and print the X4-FCS Scope Compatibility Guide to compare your scope against actual X4-FCS dimensions.
X4-FCS Scope Compatibility Guide
X4-FCS Incompatible LPVO List
Examples of compatible LPVO reticles.
These will not interfere with visibility of the X4-FCS reticle:
Examples of non-optimal LPVO reticles.
These can still be utilized with the X4-FCS using the digital ballistic readout feature (available via advanced menu options):
Purpose-built electronics designed for efficient power usage
Designed to meet stringent environmental specs
Accurate ranging for demanding applications
Manufactured from solid billet corrosion-resistant 7075 aluminum
Designed and manufactured in the USA
Hydra-15 Data Sheet
Rangefinding Laser:
1534 nm
Weight:
63 g
Dimensions (L,W,H):
2.2 x 1.5 x 0.9 in (57 x 38 x 22 mm)
Temperature Rating:
-40°F to 140°F (-40°C to 60°C)
Input voltage:
5.0 V ± 0.2V
Power Consumption (Operational):
< 0.01 W
Power Consumption (During Measurement):
< 2.5 W
Data interface:
3.3 V UART
Measurement Resolution:
0.1 m
Measurement Accuracy (1σ):
< 1 m
Mechanical Shock:
1,500 g, 0.5 ms half-sine
Hydra-15 STEP 3D Model
Hydra-15 IGES 3D Model
EXPORT NOTICE: The Hydra-15 is controlled for export under the International Traffic in Arms Regulations (ITAR), which are administered by the U.S. Department of State and listed on the United States Munitions List (USML). As part of your acceptance of goods, technical data, or services provided, you acknowledge that the unauthorized export, re-export, transfer, or disclosure, directly or indirectly, of the controlled items, technical data, or services is strictly prohibited under U.S. law. Violations of these regulations are subject to severe civil and criminal penalties, including fines and imprisonment.
It is the sole responsibility of the customer to comply with all applicable U.S. export control laws and regulations, including obtaining the necessary licenses or other governmental authorizations prior to exporting, re-exporting, or transferring controlled items, technical data, or services. By acquiring ITAR-controlled products or data, you represent and warrant that you are not prohibited from receiving such items under U.S. export laws.
PLEASE NOTE: Certain jurisdictions may restrict the sale, shipment, or use of this product. It is your responsibility to comply with local laws.
All dimensions are in millimeters (mm)
These accessories sold separately:
X4-FCS
X4-LRF
X4 FCS-to-LRF Cable
X4 Rail-Mounted Remote
X4 Low-Profile Remote
Or evaluate the whole X4 System:
X4 System
Designed to meet MIL-STD-810 environmental specs
Compatible with Geissele and Reptilia 30mm and 34mm mounts
Manufactured from solid billet aircraft-grade 7075-T6 aluminum
Designed and manufactured in the USA
Platform:
STANAG
(Compatible with Picatinny STANAG 2324/MIL-STD-1913)
Dimensions (LxWxH):
4 x 1.7 x. 1.5 in (102 x 45 x 39 mm)
Scope Ring Diameter:
30mm size: 1.2 in (30 mm)
34mm size: 1.3 in (34 mm)
Scope Objective Diameter:
2.3 in (58 mm) max
Weight:
2 oz (56 g)
Fastener:
8-40 (4x included)
Fastener Driver:
T15 (Included)
Mount Compatibility:
30mm and 34mm
The X4 Diving Board Mount comes with:
• Four rail mount fasteners
• T15 Torx tool
• Installation instructions
X4 Diving Board Mount User Guide
WARNING: Observe safe firearm handling practices at all times. Failure to do so may result in serious bodily injury or death. Maztech Industries shall not be responsible for injury, death, or property damage resulting from faulty installation, misuse, illegal use, or modification of this product.
The X4 FCS-to-LRF Cable comes with:
• Installation instructions
These accessories sold separately:
X4-FCS
X4-LRF
X4 Diving Board Mount
X4 Rail-Mounted Remote
X4 Low-Profile Remote
Or evaluate the whole X4 System:
X4 System
.jpg)
X4-LRF Range Data available instantly in the X4-FCS
Designed to meet MIL-STD-810 environmental specs
Allows for use of X4-FCS I/O Port by an X4 Wired Remote
Rugged breakaway I/O Connector
Designed and manufactured in the USA
Weight:
0.6 oz (18 g)
Cable Length:
8" or 20" (203 or 508 mm)
Interconnects:
X4 Fire Control System to X4 Laser Rangefinder
Temperature Rating:
-40°F to 140°F (-40°C to 60°C)
X4-FCS-to-LRF Cable User Guide
WARNING: Observe safe firearm handling practices at all times. Failure to do so may result in serious bodily injury or death. Maztech Industries shall not be responsible for injury, death, or property damage resulting from faulty installation, misuse, illegal use, or modification of this product.
These accessories sold separately:
X4-FCS
X4-LRF
X4 Diving Board Mount
X4 Rail-Mounted Remote
_edited_edited_edited_edited.png)
X4 FCS-to-LRF Cable
Or evaluate the whole X4 System:
X4 System
Haptic feedback on button click
Designed to meet MIL-STD-810 environmental specs
Compatible with both X4-FCS and X4-LRF
Rugged breakaway I/O Connector
Designed and manufactured in the USA
Weight:
1 oz (28 g)
Dimensions (L,W,H):
3 x 1.3 x 0.7 in (76 x 33 x 18 mm)
Cable Length:
12" or 20" (305 or 508 mm)
Feature:
Haptic Feedback when utilized with X4-LRF (can be disabled)
Temperature Rating:
-40°F to 140°F (-40°C to 60°C)
The X4 Low-Profile Remote comes with:
• Adhesive-backed Hook-and-Loop
• Installation instructions
X4 Low-Profile Remote User Guide
These accessories sold separately:
X4-FCS
X4-LRF
X4 Diving Board Mount
X4 Low-Profile Remote
X4 FCS-to-LRF Cable
Or evaluate the whole X4 System:
X4 System
Tactile response on button click
Designed to meet MIL-STD-810 environmental specs
Compatible with both X4-FCS and X4-LRF
Rugged breakaway I/O Connector
Designed and manufactured in the USA
Platform:
STANAG 4694 (Compatible with STANAG 2324 / Picatinny MIL-STD-1913)
Weight:
1.5 oz (41 g)
Dimensions (L,W,H):
13.9 x 1.3 x 0.8 in (352 x 33 x 10 mm)
Rail Bolt Interface:
T15 (Wrench Included) or Flathead Screwdriver
Temperature Rating:
-40°F to 140°F (-40°C to 60°C)
The X4 Rail-Mounted Remote comes with:
• T15 Torx wrench
• Installation instructions
X4 Rail-Mounted Remote User Guide
WARNING: Observe safe firearm handling practices at all times. Failure to do so may result in serious bodily injury or death. Maztech Industries shall not be responsible for injury, death, or property damage resulting from faulty installation, misuse, illegal use, or modification of this product.
