SKU MZT014-08

World-class performance in a compact package



The Hydra-8™ includes Maztech’s reliable, low-noise, high-gain APD photoreceiver that offers best-in-class sensitivity, allowing for optimal performance out to 8 kilometers with less laser pulse energy & lower power in an ultra-small form-factor.

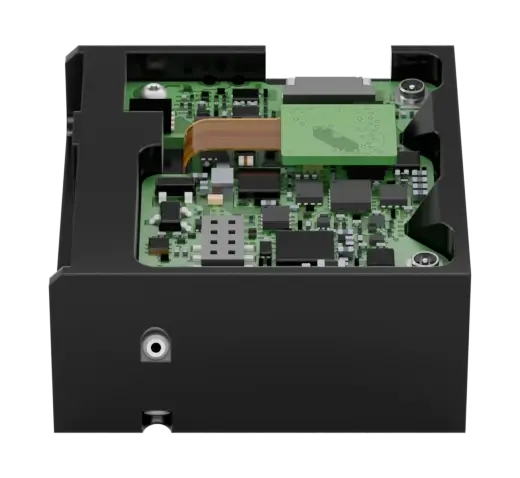

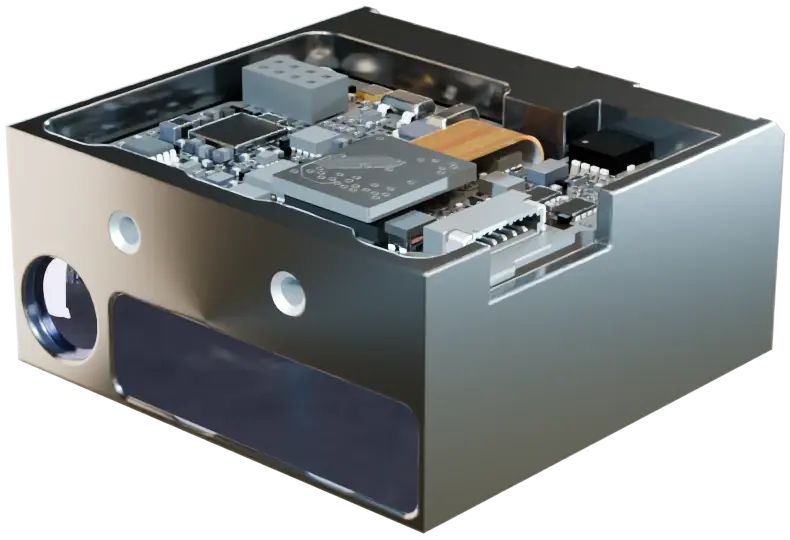

Maztech’s Hydra-8™ diode-pumped, solid-state OEM Laser Rangefinder (LRF) module provides high-performance eye-safe laser ranging capability for optoelectronic systems and consumer products.

Please pick a model.

Notification to customers that bought an X4-LRF or X4 Low-Profile Remote before Nov 17, 2025: Click here for low-temperature recall notice of your X4 Low-Profile Remote

CALIFORNIA WARNING: Can expose you to formaldehyde, a carcinogen, and bisphenol S (BPS), a reproductive toxicant. See www.P65Warnings.ca.gov.

​

Also available at Maztech Preferred Distributors:

magpul logo padded.png
  • lrf

    Low power, high sensitivity

    Reliable, accurate measurements

    Straightforward system integration

    Our most compact module

    Designed and manufactured in the USA

  • These accessories sold separately:


    X4-FCS


    X4-LRF

    Untitled-1 (3)_edited_edited_edited.png

    X4 FCS-to-LRF Cable


    X4 Rail-Mounted Remote

    shared image (1)_edited_edited_edited.png

    X4 Low-Profile Remote

    FCS Diving Board front_edited.png

    X4 Diving Board Mount


    Or evaluate the whole X4 System:


    X4 System


  • Rangefinding Laser:

    1534 nm

    Weight:

    < 25 g

    Dimensions (L,W,H):

    1.18 x 1.18 x 0.55 in (30 x 30 x 14 mm)

    Temperature Rating:

    -40°F to 140°F (-40°C to 60°C)

    Input voltage:

    5.0 V ± 0.2V

    Power Consumption (Operational):

    < 0.01 W

    Power Consumption (During Measurement):

    < 2.5 W

    Data interface:

    3.3 V UART

    Measurement Resolution:

    0.1 m

    Measurement Accuracy (1σ):

    < 1 m

    Mechanical Shock:

    1,500 g, 0.5 ms half-sine




  • EXPORT NOTICE: The Hydra-15 is controlled for export under the International Traffic in Arms Regulations (ITAR), which are administered by the U.S. Department of State and listed on the United States Munitions List (USML). As part of your acceptance of goods, technical data, or services provided, you acknowledge that the unauthorized export, re-export, transfer, or disclosure, directly or indirectly, of the controlled items, technical data, or services is strictly prohibited under U.S. law. Violations of these regulations are subject to severe civil and criminal penalties, including fines and imprisonment.

    ​It is the sole responsibility of the customer to comply with all applicable U.S. export control laws and regulations, including obtaining the necessary licenses or other governmental authorizations prior to exporting, re-exporting, or transferring controlled items, technical data, or services. By acquiring ITAR-controlled products or data, you represent and warrant that you are not prohibited from receiving such items under U.S. export laws.​PLEASE NOTE: Certain jurisdictions may restrict the sale, shipment, or use of this product. It is your responsibility to comply with local laws.

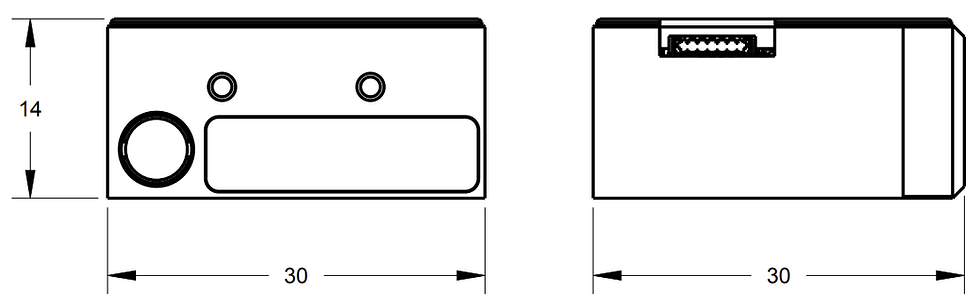

  • All dimensions are in millimeters (mm) unless otherwise stated

Low power, high sensitivity

Reliable, accurate measurements

Straightforward system integration

Our most compact module

Designed and manufactured in the USA

X4-LRF
