Laser Rangefinder Sensor with High Dynamic Range

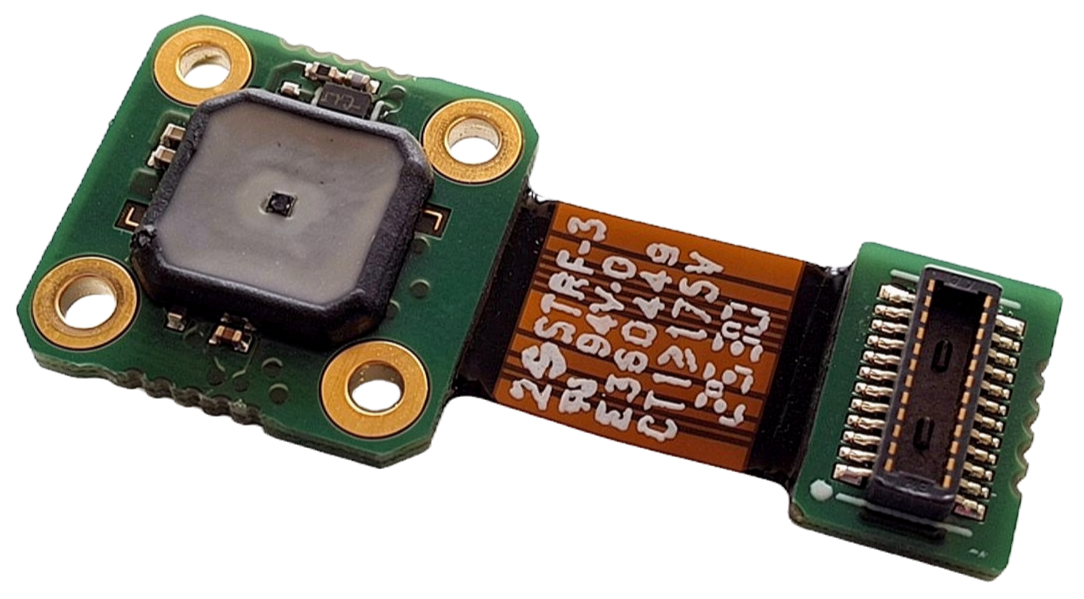

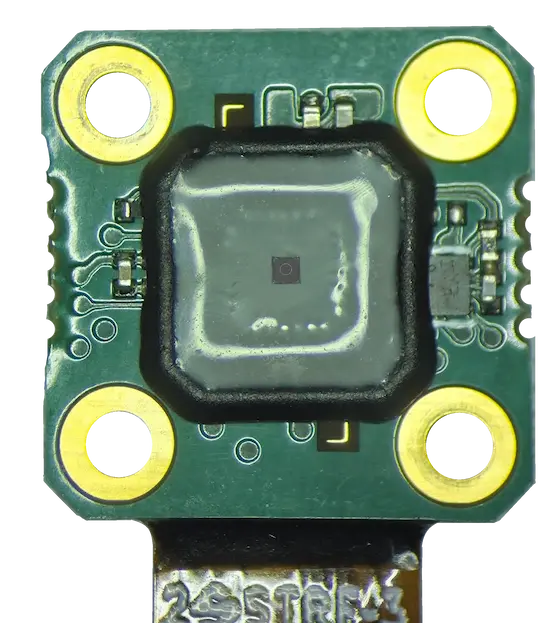

Maztech’s laser rangefinder (LRF) receiver sensor integrates the high-gain low-noise Aries InGaAs APD with a custom CMOS application specific integrated circuit (ASIC) as well as signal processing and power conditioning circuitry to provide a LRF receiver core with superior sensitivity and reliable ranging performance.
Please pick a model.
Notification to customers that bought an X4-LRF or X4 Low-Profile Remote before Nov 17, 2025: Click here for low-temperature recall notice of your X4 Low-Profile Remote
CALIFORNIA WARNING: Can expose you to formaldehyde, a carcinogen, and bisphenol S (BPS), a reproductive toxicant. See www.P65Warnings.ca.gov.
Also available at Maztech's Preferred Distributor:
High gain, low noise NIR InGaAs APD allows superior ranging with low false alarm rate
70+ dB input dynamic range
Temperature-compensated avalanche gain
Rugged core made for challenging environments
Designed and manufactured in the USA
These accessories sold separately:
X4-FCS
X4-LRF
X4 FCS-to-LRF Cable
X4 Rail-Mounted Remote
X4 Low-Profile Remote
X4 Diving Board Mount
Or evaluate the whole X4 System:
X4 System
_edited_edited_edited.png)
_edited_edited_edited.png)
Signal Input Pulse Width
3.5 ns (Gaussian)
Spectral Range, λ
1550 nm (950 to 1700)
Optically Active Diameter
75 µm
Bandwidth
100 MHz
Low Frequency Cutoff
300 kHz (typical)
APD Operating Gain, M
5 - 20 (typical)
Small Signal Responsivity
8900 kV/W (typical)
Temporal Resolution
206 ps RMS
Pulse Pair Resolution
70 ns (typical)
Linear Dynamic Range
25 dB
Total Dynamic Range
70 dB
Comparator Threshold Level
0.48 - 0.78 V (typical)
Noise Equivalent Power
0.5 nW ± 0.2 nW
Signal Sensitivity
2.0 nW ± 0.8 nW
Maximum Instantaneous Power
6 MW/cm2
POWER REQUIREMENTS
Input Power (2.0 V)
40 mW
ENVIRONMENTAL
Operating Temperature
-40 to 80 °C
